Injection Molding Process


Injection Molding is the process of pushing or injecting molten plastic into a mold cavity. Plastic resin is fed into a heated barrel, mixed, and injected into a tool, where it cools and hardens to the configuration of the mold cavity. Lomont’s molding process is ideal for high or low production runs and can handle the challenges of complex geometries.

Plastic Injection Molding Process

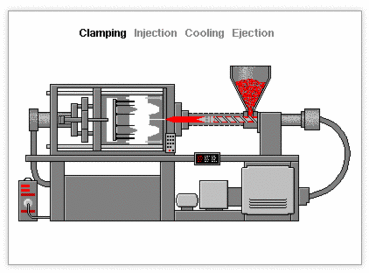

There are six steps within Lomont’s Injection Molding process: Clamping, Injection, Dwelling, Cooling Mold, Opening, and Ejection. Each step has its own challenges, but each step is required to ensure that your molded parts follow the correct process.

Clamping Stage

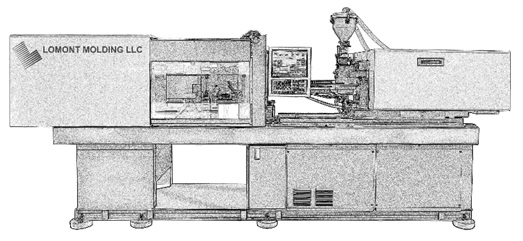

An injection molding apparatus consists of three basic parts: the mold, the clamping unit and injection unit. The high strength clamp operates by holding the two halves of the injection mold together during the injection and cooling. The clamping is accomplished through hydraulic or electric pressure

Injection Stage

During the injection phase plastic pellet material flows into a hopper on top of the injection unit. The pellets feed into a cylinder where they are heated until they turn molten. A motorized screw, or ram, within the heating cylinder then mixes the molten resin and force the polymer to the end of the cylinder. Once enough material has accumulated in front of the screw, the injection process begins. The molten plastic is inserted into the mold through a sprue, while the pressure and speed are controlled by the screw.

Dwelling Stage

The dwelling phase provides increased pressure building within the injection process. Once the molten plastic has been injected into the mold, pressure is applied to make sure all the mold cavities are filled. This portion of the injection molding process helps to build the molded parts overall wall thickness.

Cooling Stage

The cooling stage of the injection molding process allows the molded part to properly cool. Cooling times vary depending on thickness of the part wall.

Opening Stage

The mold separates as the clamping pressure releases. Once this occurs the mold is separated into two halves.

Ejection Stage

The ejection of the mold is accomplished by using an ejection rod and plate to eject the newly generated high strength finished part. The unused sprues and runners can be recycled for use again in future production runs.

Injection Molding Benefits

The primary advantage of injection molding, and the overall molding process is the ability to scale production to your specific needs. Once the initial costs have been paid the price per unit during injection molded manufacturing is extremely low. The price also tends to drop considerably as more parts are produced. Other advantages include:

  • Reduces waste
  • Easily repeatable process
  • High production rates
  • Wide range of available materials
  • Low labor cost
  • Little to no finishing required


Lomont's High Pressure Injection Molding expertise include:

  • ISO 9001 Certified
  • Complex Geometry Parts
  • Metal to Plastic Conversion
  • Controlling wall thickness

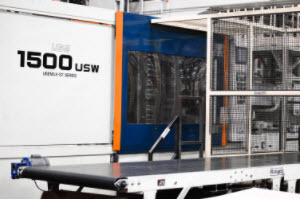

  • 55 to 2,700 Tonnage Capacity
